Payments

1. Payments module

Module Identifier: payments

Data owner: PTP

Type: Functional Module

This module should support the Payment Terminal use case for direct payment in the roaming world.

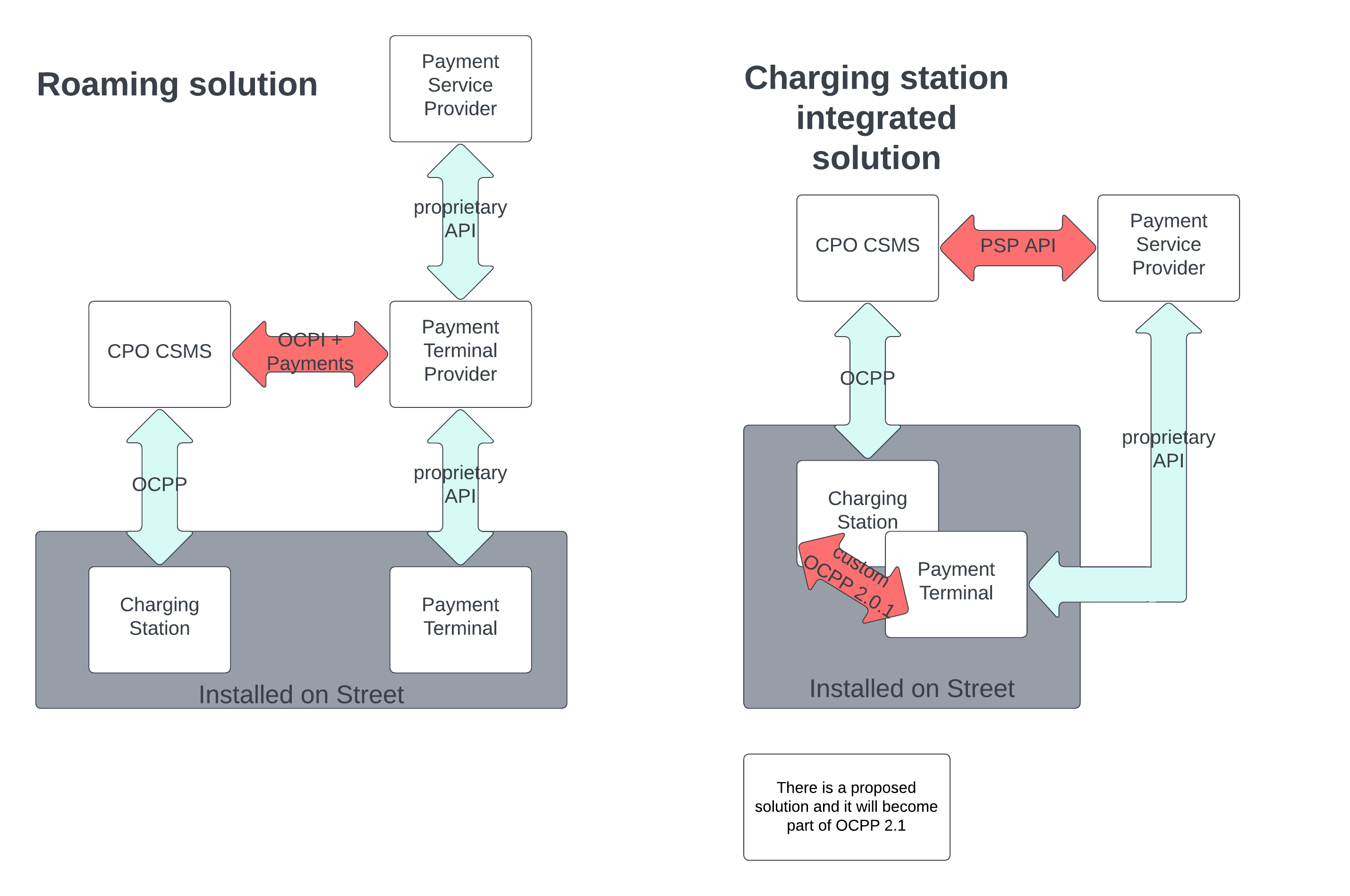

This should show the difference between roaming and an integrated charging station solution for direct payment support.

The module consists mainly of two objects: Terminal and Financial Advice Confirmation. A terminal can handle multiple locations and/or EVSEs. It should be able for a CPO to assign them to a terminal object. At the end of a charging session there should be a CDR sent. There should be also send a financial-advice-confirmation from the PTP. This should contain the actual cost and EFT data. This object is only needed if the CPO creates the invoice.

1.1. Usage Flows

1.2. Terminal Assignment

This flow shows the exchange and the assignment of the terminal object. This object will be owned and created by the PTP. After the object was pushed to/pulled by the CPO there will be the possibility to assign specific locations to this terminal. This assignment then will be pushed by the CPO to the PTP.

1.3. Terminal Activation

This flow shows a possible former activation of a payment terminal. Usually, this will be needed for payment terminals integrated into a station. Here the CPO orders a station from the OEM with an integrated payment terminal. The OEM will provide a reference to the CPO which can then be used for the terminal activation at the PTP. After the activation, the PTP will create a terminal object on the CPO side. This activation is needed as the PTP has to do several configuration steps in beforehand, like acquiring a unique ID for the given installation address.

1.4. Transaction

This flow shows a single transaction in total. After choosing a specific connector on the terminal the PTP has to pull the current connector information to receive the applicable tariff_id. With this id the tariff should be pulled so that it can be shown on the terminal. Also the tariff is needed to reserve the needed preauth limit (stated in the preauthorize_amount field of the tariff) at the PSP. When the user accepts the tariff the PTP will reserve the preauth amount at the PTP and a StartSession command will be sent to the CPO. The PTP will pass an authorization_reference with this request which will be used as the mapping for the invoice (e.g. as postfix of the invoice URL). During the session there will be session updates pushed by the CPO if existing. For stopping the session there are 3 ways:

can be stopped by the car or by the station
a StopSession can be sent by the PTP when the preauth limit is reached
can also be stopped by the CPO backend if the preauth limit is reached

Now the PTP will receive a CDR with an filled invoice_reference_id. If this id is set then the invoice was created by the CPO, if not then the invoice will be created by the PTP. If the CPO creates the invoice, the PTP has to push a financial-advice-confirmation object after he has done the capture at the PSP. When the CPO has received this object the previously created invoice has to be enriched with the required EFT data.

1.5. Interfaces and Endpoints

1.5.1. Sender Interface

Typically implemented by market roles like: PTP.

Terminals Interface

Method Description

Method	Description
GET	Fetch Terminal objects last updated between the and (paginated).
GET	Fetch a Terminal object by its ID.
POST	Activate a Terminal.
POST	Deactivate a Terminal.
PUT	Updating a Terminal object.
PATCH	Updating a Terminal object(Location assignment)

GET

Fetch Terminal objects last updated between the and (paginated).

GET

Fetch a Terminal object by its ID.

POST

Activate a Terminal.

POST

Deactivate a Terminal.

PUT

Updating a Terminal object.

PATCH

Updating a Terminal object(Location assignment)

Financial Advice Confirmation Interface

Method Description

Method	Description
GET	Fetch Financial Advice Confirmation objects last updated between the and (paginated).
GET	Fetch a Financial Advice Confirmation object by its ID.

GET

Fetch Financial Advice Confirmation objects last updated between the and (paginated).

GET

Fetch a Financial Advice Confirmation object by its ID.

GET Terminals Method

Fetch Terminals from a PTP system.

Endpoint structure definition:

/payments/terminals?[date_from=]&[date_to=]&[offset=]&[limit=]

Examples:

https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/?date_from=2019-01-28T12:00:00&date_to=2019-01-29T12:00:00

https://ocpi.server.com/2.2.1/payments/terminals/?offset=50

https://www.server.com/ocpi/2.2.1/payments/terminals/?date_from=2019-01-29T12:00:00&limit=100

https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/?offset=50&limit=100

Request Parameters

If the optional parameters date from and/or date to are provided, only Terminals with last_update between the given (including) and (excluding) will be returned.

This request is paginated, it supports the pagination related URL parameters.

Parameter Datatype Required Description

Parameter	Datatype	Required	Description
date_from	DateTime	no	Only return Sessions that have `last_updated` after or equal to this Date/Time (inclusive).
date_to	DateTime	no	Only return Sessions that have `last_updated` up to this Date/Time, but not including (exclusive).
offset	int	no	The offset of the first object returned. Default is 0.
limit	int	no	Maximum number of objects to GET.

date_from

DateTime

Only return Sessions that have last_updated after or equal to this Date/Time (inclusive).

date_to

DateTime

Only return Sessions that have last_updated up to this Date/Time, but not including (exclusive).

offset

int

The offset of the first object returned. Default is 0.

limit

int

Maximum number of objects to GET.

Response Data

The response contains a list of Terminals objects that match the given parameters in the request, the header will contain the pagination related headers.

Any older information that is not specified in the response is considered no longer valid. Each object must contain all required fields. Fields that are not specified may be considered as null values.

Datatype	Card.	Description
Terminal	*	List of Terminal objects that match the request parameters.

Datatype

Card.

Description

Terminal

List of Terminal objects that match the request parameters.

GET Terminal Method

If the CPO wants to check the status of a Terminal object in the PTP system, it might GET the object from the PTP system for validation purposes.

Request Parameters

The following parameters can be provided as URL segments.

Parameter	Datatype	Required	Description
terminal_id	CiString(36)	yes	Terminal.terminal id of the Terminal object to retrieve.

Parameter

Datatype

Required

Description

terminal_id

CiString(36)

yes

Terminal.terminal id of the Terminal object to retrieve.

Response Data

The response contains the requested object.

Type	Card.	Description
> Terminal	1	Requested Terminal.

Type

Card.

Description

> Terminal

Requested Terminal.

PATCH Terminal Method

This PATCH should be used by the CPO to assign location ids and/or evse_uids to a terminal. When sending both location_ids and evse_uids then both have to be considered and the sum of evses will be enabled for this payment terminal.

Request Parameters

This is an information Push message, the objects pushed will not be owned by the CPO.

Parameter	Datatype	Required	Description
terminal_id	CiString(36)	yes	Terminal.terminal id of the Terminal object to update.

Parameter

Datatype

Required

Description

terminal_id

CiString(36)

yes

Terminal.terminal id of the Terminal object to update.

Example: Assign Location IDs to Terminal

This is the expected type of update message. It is used to assign Location ids to a terminal.

PATCH To URL: https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/55719888-
ed09-4cca-82cc-803bdb77bf26

{
  "location_ids": [
    "df37373d-1669-4127-a6ac-d86750095119",
    "a06dc823-3e5a-40c8-89cf-1b5b9e941412",
    "55719888-ed09-4cca-82cc-803bdb77bf26"
  ]
}

PUT Terminal Method

This PUT should be used by the CPO to update location data of a terminal.

Request Parameters

This is an information Push message, the objects pushed will not be owned by the CPO.

Parameter	Datatype	Required	Description
terminal_id	CiString(36)	yes	Terminal.terminal id of the Terminal object to update.

Parameter

Datatype

Required

Description

terminal_id

CiString(36)

yes

Terminal.terminal id of the Terminal object to update.

Request Body

The request body contains the updated object.

Type	Card.	Description
> Terminal	1	Terminal object to update.

Type

Card.

Description

> Terminal

Terminal object to update.

Example: Setting customer_reference and invoice_base_url

PUT To URL: https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/55719888-
ed09-4cca-82cc-803bdb77bf26

{
  "customer_reference": "OMV",
  "invoice_base_url": "someNewURL",
  "last_updated": "2021-01-01T00:00:00Z"
}

POST Activate Terminal Method

This POST request should be used by the CPO to activate a terminal with needed information on the PTP side. Activation of a terminal may be needed for payment terminals integrated into a station. Here the CPO has to give the PTP needed information to link the payment terminal to the location/evse. This can be done for example via the serial number or other mappings sent via the reference. After receiving an activation request the PTP should start the Terminal creation process by creating a Terminal object on the CPO side with calling the corresponding POST endpoint.

Endpoint structure definition:

/payments/terminals/activate

Examples:

+https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/activate

Request Body

The request body contains an Terminal to activate.

The terminal_id is optional in the activation request as it will be set by the PTP. The cardinality for the remaining fields stays the same.

Type	Card.	Description
> Terminal	1	Terminal object to update.

Type

Card.

Description

> Terminal

Terminal object to update.

Example: Activating a Terminal with basic data

POST To URL: https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/activate

{
  "terminal_id": "a06dc823-3e5a-40c8-89cf-1b5b9e941412",
  "location_ids": [
    "df37373d-1669-4127-a6ac-d86750095119"
  ],
  "reference": "Term-SerialNumber",
  "last_updated": "2019-12-10T17:16:15Z"
}

POST Deactivate Terminal Method

This POST request should be used by the CPO to deactivate a given terminal. This may be necessary when the terminal is broken or there is an address change for the given terminal.

Endpoint structure definition:

/payments/terminals//deactivate

Examples:

+https://www.server.com/ocpi/ptp/2.2.1/payments/terminals/55719888- ed09-4cca-82cc-803bdb77bf26/deactivate

GET Financial Advice Confirmations Method

Fetch Financial Advice Confirmations from a PTP system.

Endpoint structure definition:

/payments/financial_advice_confirmations?[date_from=]&[date_to=]&[offset=]&[limit=]

Examples:

https://www.server.com/ocpi/ptp/2.2.1/payments/financial-advice-confirmations/?date_from=2019-01-28T12:00:00&date_to=2019-01-29T12:00:00

https://ocpi.server.com/2.2.1/payments/financial-advice-confirmations/?offset=50

https://www.server.com/ocpi/2.2.1/payments/financial-advice-confirmations/?date_from=2019-01-29T12:00:00&limit=100

https://www.server.com/ocpi/ptp/2.2.1/payments/financial-advice-confirmations/?offset=50&limit=100

Request Parameters

If the optional parameters date from and/or date to are provided, only Financial Advice Confirmations with last_update between the given (including) and (excluding) will be returned.

This request is paginated, it supports the pagination related URL parameters.

Parameter Datatype Required Description

Parameter	Datatype	Required	Description
date_from	DateTime	no	Only return Sessions that have `last_updated` after or equal to this Date/Time (inclusive).
date_to	DateTime	no	Only return Sessions that have `last_updated` up to this Date/Time, but not including (exclusive).
offset	int	no	The offset of the first object returned. Default is 0.
limit	int	no	Maximum number of objects to GET.

date_from

DateTime

Only return Sessions that have last_updated after or equal to this Date/Time (inclusive).

date_to

DateTime

Only return Sessions that have last_updated up to this Date/Time, but not including (exclusive).

offset

int

The offset of the first object returned. Default is 0.

limit

int

Maximum number of objects to GET.

Response Data

The response contains a list of Financial Advice Confirmation objects that match the given parameters in the request, the header will contain the pagination related headers.

Datatype	Card.	Description
FinancialAdviceConfirmation	*	List of Financial Advice Confirmation objects that match the request parameters.

Datatype

Card.

Description

FinancialAdviceConfirmation

List of Financial Advice Confirmation objects that match the request parameters.

GET Financial Advice Confirmation Method

If the CPO wants to check the status of a Financial Advice Confirmations object in the PTP system, it might GET the object from the PTP system for validation purposes.

Request Parameters

The following parameters can be provided as URL segments.

Parameter	Datatype	Required	Description
financial_advice_confirmation_id	CiString(36)	yes	Financial Advice confirmation.id of the financial advice confirmation object to retrieve.

Parameter

Datatype

Required

Description

financial_advice_confirmation_id

CiString(36)

yes

Financial Advice confirmation.id of the financial advice confirmation object to retrieve.

Response Data

The response contains the requested object.

Type	Card.	Description
> Financial Advice Confirmation	1	Requested Financial Advice Confirmation.

Type

Card.

Description

> Financial Advice Confirmation

Requested Financial Advice Confirmation.

1.5.2. Receiver Interface

Typically implemented by market roles like: CPO.

Terminals Interface

Method Description

Method	Description
GET	Retrieve a Terminal object from the CPO’s system with Terminal.id equal to .
POST	Creating a Terminal object in the CPO’s system.

GET

Retrieve a Terminal object from the CPO’s system with Terminal.id equal to .

POST

Creating a Terminal object in the CPO’s system.

Financial Advice Confirmation Interface

Method Description

Method	Description
GET	Retrieve a Financial Advice Confirmation object from the CPO’s system with FinancialAdviceConfirmation.id equal to .
POST	Creating a Financial Advice Confirmation object in the CPO’s system.

GET

Retrieve a Financial Advice Confirmation object from the CPO’s system with FinancialAdviceConfirmation.id equal to .

POST

Creating a Financial Advice Confirmation object in the CPO’s system.

GET Terminal Method

The PTP system might request the current version of a Terminal object from the CPO’s system to, for example, validate the state.

Request Parameters

The following parameters shall be provided as URL segments.

Parameter	Datatype	Required	Description
terminal_id	CiString(36)	yes	id of the Terminal object to get from the CPO’s system.

Parameter

Datatype

Required

Description

terminal_id

CiString(36)

yes

id of the Terminal object to get from the CPO’s system.

Response Data

The response contains the requested Terminal object.

Datatype	Card.	Description
Terminal	1	Requested Terminal object.

Datatype

Card.

Description

Terminal

Requested Terminal object.

POST Terminal Method

The POST should be used by the PTP to create a newly shipped terminal on the CPO’s system. Here, if no activation was sent before no location ids should be included as the assignment will be done by the CPO. The object sent here can be just the terminal id or an object with additional data if known through the terminal order and/or activation process.

Request Body

The request contains the new Terminal object.

Type	Card.	Description
Terminal	1	New Terminal object.

Type

Card.

Description

Terminal

New Terminal object.

Example: Create a minimal Terminal

POST To URL: https://www.server.com/ocpi/cpo/2.2.1/payments/terminals/

{
  "terminal_id": "452cf8a1-79aa-4a0e-9aee-dc788586053c"
}

Example: Create a Terminal

POST To URL: https://www.server.com/ocpi/cpo/2.2.1/payments/terminals/

{
  "terminal_id": "452cf8a1-79aa-4a0e-9aee-dc788586053c",
  "address": "Street 1",
  "city": "Vienna",
  "country": "AUT",
  "coordinates": {
    "latitude": "51.047599",
    "longitude": "3.729944"
  },
  "customer_reference": "ChargePoint",
  "invoice_base_url": "https://somecompany.com/invoices",
  "invoice_creator": "CPO",
  "location_ids": [],
  "last_updated": "2018-12-10T17:16:15Z"
}

GET Financial Advice Confirmation Method

The PTP system might request the current version of a Financial Advice Confirmation object from the CPO’s system to, for example, validate the state.

Request Parameters

The following parameters shall be provided as URL segments.

Parameter	Datatype	Required	Description
financial_advice_confirmation_id	CiString(36)	yes	id of the Financial Advice Confirmation object to get from the CPO’s system.

Parameter

Datatype

Required

Description

financial_advice_confirmation_id

CiString(36)

yes

id of the Financial Advice Confirmation object to get from the CPO’s system.

Response Data

The response contains the requested Financial Advice Confirmation object.

Datatype	Card.	Description
FinancialAdviceConfirmation	1	Requested Financial Advice Confirmation object.

Datatype

Card.

Description

FinancialAdviceConfirmation

Requested Financial Advice Confirmation object.

POST Financial Advice Confirmation Method

The POST should be used by the PTP to create a Financial Advice confirmation on the CPO’s system. This will be used to get the status of the capture and also the required eft data to put on the invoice. The PTP has to make sure to use the same authorization reference as provided in the Commands.StartSession so that the CPO can properly map the financial advice to the session.

Request Body

The request contains the new Financial Advice Confirmation object.

Type	Card.	Description
FinancialAdviceConfirmation	1	New Financial Advice Confirmation object.

Type

Card.

Description

FinancialAdviceConfirmation

New Financial Advice Confirmation object.

Example: Create a Financial Advice Confirmation

POST To URL: https://www.server.com/ocpi/cpo/2.2.1/payments/financial-advice-confirmations/

{
  "id": "452cf8a1-79aa-4a0e-9aee-dc788586053c",
  "authorization_reference": "pp-100100-1948213567",
  "total_costs": {
    "excl_vat": 4.00,
    "incl_vat": 4.40
  },
  "currency": "EUR",
  "eft_data": [
    "Mastercard",
    "AID: 1234",
    "Crypto: 3456",
    "Nr: **** **** **** 1234",
    "SEQ: 00",
    "Amount: EUR 4.40"
  ],
  "capture_status_code": "SUCCESS",
  "capture_status_message": "Capture successfull at PSP",
  "last_updated": "2018-12-10T17:16:15Z"
}

1.6. Object description

1.6.1. Terminal Object

The Terminal object describes one physical payment terminal. It is designed primarily to establish a mapping between charge points (locations and/or EVSEs) and payment terminals. The object facilitates the configuration of necessary payment-related data, such as customer reference identifiers and invoice URLs

Property	Type	Card.	Description
terminal_id	CiString(36)	1	Unique ID that identifies a terminal.
customer_reference	CiString(36)	?	This reference will be used to link the terminal to a CSMS. The reference might also be provided via the order process.
party_id	CiString(3)	?	This is an alternative to the customer reference which can be used.
country_code	CiString(2)	?	This is an alternative to the customer reference which can be used.
address	CiString(45)	?	Street/block name and house number if available.
city	CiString(45)	?	City or town.
postal_code	CiString(10)	?	Postal code of the terminal, may only be omitted when the terminal has no postal code.
state	CiString(20)	?	State or province of the location, only to be used when relevant.
country	CiString(3)	?	ISO 3166-1 alpha-3 code for the country of this location.
coordinates	GeoLocation	?	Coordinates of the terminal.
invoice_base_url	URL	?	BaseURL to the downloadable invoice
invoice_creator	InvoiceCreator	?	Describes which party creates the invoice for the eDriver.
reference	CiString(36)	?	Mapping value as issued by the PTP(e.g serial number).
location_ids	CiString(36)	*	List of all locations assigned to that terminal.
evse_uids	CiString(36)	*	List of all EVSEs assigned to that terminal.
last_updated	DateTime	1	Timestamp when this Terminal was last updated (or created).

Property

Type

Card.

Description

terminal_id

CiString(36)

Unique ID that identifies a terminal.

customer_reference

CiString(36)

This reference will be used to link the terminal to a CSMS. The reference might also be provided via the order process.

party_id

CiString(3)

This is an alternative to the customer reference which can be used.

country_code

CiString(2)

This is an alternative to the customer reference which can be used.

address

CiString(45)

Street/block name and house number if available.

city

CiString(45)

City or town.

postal_code

CiString(10)

Postal code of the terminal, may only be omitted when the terminal has no postal code.

state

CiString(20)

State or province of the location, only to be used when relevant.

country

CiString(3)

ISO 3166-1 alpha-3 code for the country of this location.

coordinates

GeoLocation

Coordinates of the terminal.

invoice_base_url

URL

BaseURL to the downloadable invoice

invoice_creator

InvoiceCreator

Describes which party creates the invoice for the eDriver.

reference

CiString(36)

Mapping value as issued by the PTP(e.g serial number).

location_ids

CiString(36)

List of all locations assigned to that terminal.

evse_uids

CiString(36)

List of all EVSEs assigned to that terminal.

last_updated

DateTime

Timestamp when this Terminal was last updated (or created).

Examples

Simple Terminal example which is newly created

{
  "terminal_id": "452cf8a1-79aa-4a0e-9aee-dc788586053c",
  "customer_reference": "Chargepoint",
  "address": "Street 1",
  "city": "Vienna",
  "country": "AUT",
  "coordinates": {
    "latitude": "51.047599",
    "longitude": "3.729944"
  },
  "invoice_base_url": "https://somecompany.com/invoices",
  "invoice_creator": "CPO",
  "location_ids": [],
  "last_updated": "2018-12-10T17:16:15Z"
}

Terminal example with assigned locations

{
  "terminal_id": "9e94f62c-661b-4afa-b6da-019b58fab9ac",
  "address": "Street 1",
  "city": "Vienna",
  "country": "AUT",
  "coordinates": {
    "latitude": "51.047599",
    "longitude": "3.729944"
  },
  "customer_reference": "BP",
  "invoice_base_url": "https://somecompany.com/invoices",
  "invoice_creator": "PTP",
  "location_ids": [
    "df37373d-1669-4127-a6ac-d86750095119",
    "a06dc823-3e5a-40c8-89cf-1b5b9e941412",
    "55719888-ed09-4cca-82cc-803bdb77bf26"
  ],
  "last_updated": "2018-12-10T17:16:15Z"
}

Terminal example with assigned locations and EVSEs

{
  "terminal_id": "9e94f62c-661b-4afa-b6da-019b58fab9ac",
  "address": "Street 1",
  "city": "Vienna",
  "country": "AUT",
  "coordinates": {
    "latitude": "51.047599",
    "longitude": "3.729944"
  },
  "customer_reference": "BP",
  "invoice_base_url": "https://somecompany.com/invoices",
  "invoice_creator": "PTP",
  "location_ids": [
    "df37373d-1669-4127-a6ac-d86750095119",
    "a06dc823-3e5a-40c8-89cf-1b5b9e941412",
    "55719888-ed09-4cca-82cc-803bdb77bf26"
  ],
  "evse_uids": [
    "17d5f8ea-8832-454f-aff5-257bc6a25353"
  ],
  "last_updated": "2018-12-10T17:16:15Z"
}

1.6.2. Financial Advice Confirmation Object

The Financial Advice Confirmation object is utilized to encapsulate the financial details of transactions processed at payment terminals. It correlates payment transactions with charging sessions by using the authorization_reference obtained from the Commands.StartSession, Session, and CDR. This reference ensures that each financial transaction can be accurately mapped to its corresponding charging session. Additionally, the object includes eft_data (Electronic Funds Transfer data), which are mandatory for inclusion on invoices to meet legal and regulatory requirements.

Property	Type	Card.	Description
id	CiString(36)	1	Unique ID that identifies a financial advice confirmation.
authorization_reference	CiString(36)	1	Reference to the authorization given by the PTP in the Commands.StartSession.
total_costs	Price	1	Real amount that was captured at the PSP. This is a consumer price with VAT.
currency	CiString(3)	1	ISO-4217 code of the currency of this tariff.
eft_data	CiString[1..255]	+	Invoice relevant data from the direct payment.
capture_status_code	CaptureStatusCode	1	Code that identifies the financial advice status.
capture_status_message	CiString[1..255]	?	Message about any error at the financial advice.
last_updated	DateTime	1	Timestamp when this financial advice confirmation was last updated (or created).

Property

Type

Card.

Description

CiString(36)

Unique ID that identifies a financial advice confirmation.

authorization_reference

CiString(36)

Reference to the authorization given by the PTP in the Commands.StartSession.

total_costs

Price

Real amount that was captured at the PSP. This is a consumer price with VAT.

currency

CiString(3)

ISO-4217 code of the currency of this tariff.

eft_data

CiString[1..255]

Invoice relevant data from the direct payment.

capture_status_code

CaptureStatusCode

Code that identifies the financial advice status.

capture_status_message

CiString[1..255]

Message about any error at the financial advice.

last_updated

DateTime

Timestamp when this financial advice confirmation was last updated (or created).

Examples

Example of a successful capture at the PSP

{
  "id": "452cf8a1-79aa-4a0e-9aee-dc788586053c",
  "authorization_reference": "pp-100100-1948213567",
  "total_costs": {
    "excl_vat": 4.00,
    "incl_vat": 4.40
  },
  "currency": "EUR",
  "eft_data": [
    "Mastercard",
    "AID: 1234",
    "Crypto: 3456",
    "Nr: **** **** **** 1234",
    "SEQ: 00",
    "Amount: EUR 4.40"
  ],
  "capture_status_code": "SUCCESS",
  "capture_status_message": "Capture successfull at PSP",
  "last_updated": "2018-12-10T17:16:15Z"
}

Example of an unsuccessful capture at the PSP

{
  "id": "452cf8a1-79aa-4a0e-9aee-dc788586053c",
  "authorization_reference": "pp-100100-1948213567",
  "total_costs": {
    "excl_vat": 0.00,
    "incl_vat": 0.00
  },
  "currency": "EUR",
  "capture_status_code": "FAILED",
  "capture_status_message": "Capture unsuccessful at PSP",
  "last_updated": "2018-12-10T17:16:15Z"
}

1.7. Data types

1.7.1. InvoiceCreator enum

Value	Description
CPO	The CPO issues the invoice and provides it via the invoice_base_url + authorization_reference.
PTP	The PTP issues the invoice and directly shows/provides it the eDriver via the payment terminal.

Value

Description

CPO

The CPO issues the invoice and provides it via the invoice_base_url + authorization_reference.

PTP

The PTP issues the invoice and directly shows/provides it the eDriver via the payment terminal.

1.7.2. CaptureStatusCode enum

This enumeration describes the status of the payment capture process following a transaction at an EV charging station. It helps determine the outcome of the transaction and facilitates accurate financial reporting and customer billing.

Value	Description
SUCCESS	Indicates that the payment capture was completed successfully without any issues. Funds were secured and will be settled according to the payment processor’s timeline. This status confirms that all checks (e.g., fraud, card validation) passed and the transaction was approved..
PARTIAL_SUCCESS	Used when only part of the transaction amount was approved or when certain conditions of the payment were altered during processing. This might occur in scenarios where the available balance was insufficient for the full requested amount, or specific transaction limits were enforced by the card issuer.
FAILED	Indicates that the payment capture attempt was unsuccessful. This failure can be due to various reasons such as insufficient funds, card expiration, network issues, or refusal by the card issuer.

Value

Description

SUCCESS

Indicates that the payment capture was completed successfully without any issues. Funds were secured and will be settled according to the payment processor’s timeline. This status confirms that all checks (e.g., fraud, card validation) passed and the transaction was approved..

PARTIAL_SUCCESS

Used when only part of the transaction amount was approved or when certain conditions of the payment were altered during processing. This might occur in scenarios where the available balance was insufficient for the full requested amount, or specific transaction limits were enforced by the card issuer.

FAILED

Indicates that the payment capture attempt was unsuccessful. This failure can be due to various reasons such as insufficient funds, card expiration, network issues, or refusal by the card issuer.
